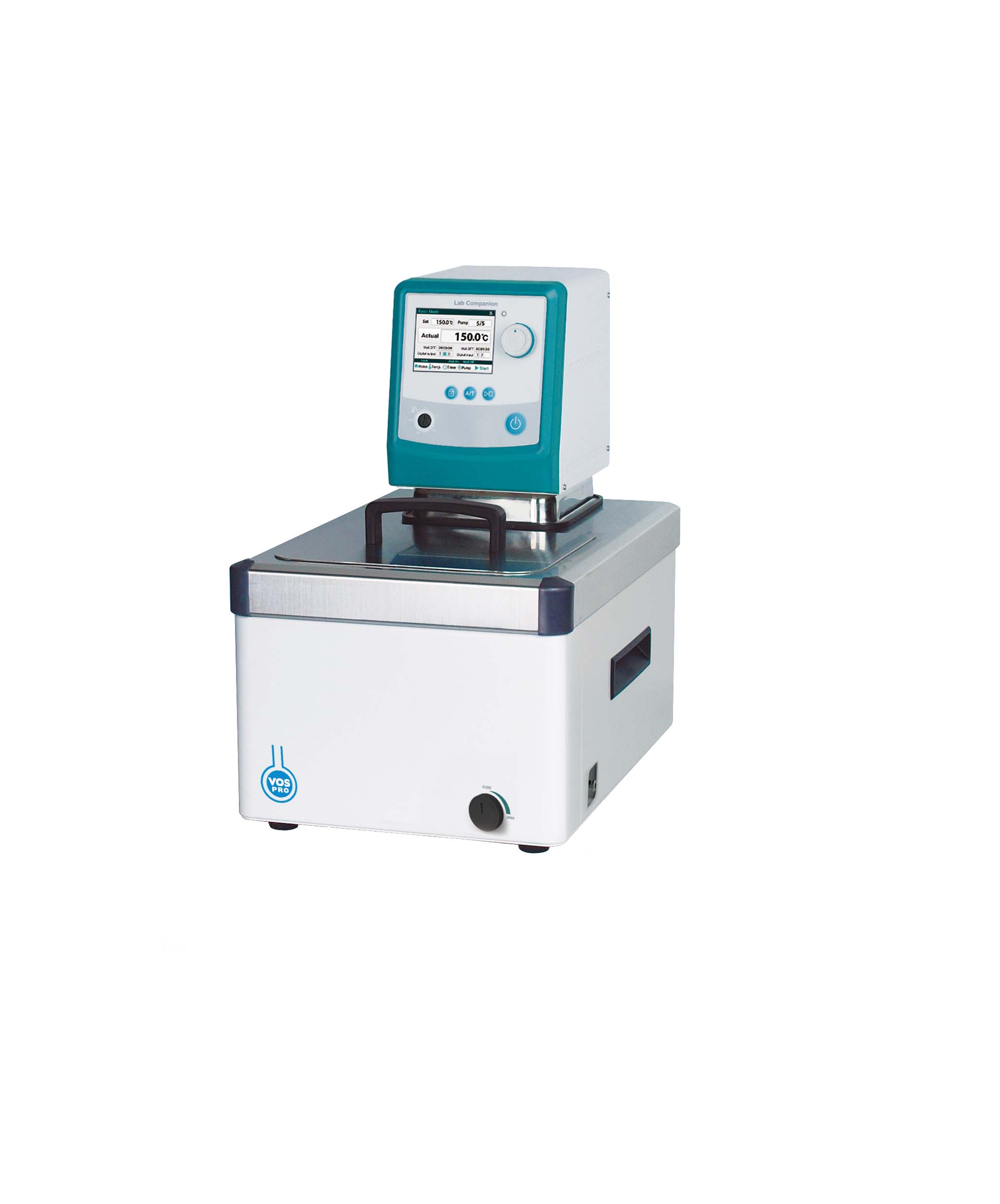

Heating Bath Circulators Programmable.
Highly intuitive user interface is insured by equipping the new smart programmable controller.

Intelligent program control

10 programs available for temperature ramp up and dwell control.
10 steps per a program and 99 hours 59 minutes per a step.
Stored programs are easily linkable.
Programs can be repeated up to 99 cycles.
Pre-heating and heating time are settable before program starts.

Performance

- Temperature range from ambient +10 °C to 150°C.
- Microprocessor PID control.
- Three point temperature calibration / Automatic tuning / Automatic run.
- Accurate, stable, and efficient temperature management by using a powerful variable-speed pump. (1 to 3 steps of pump for internal circulation and 4 to 5 steps for external circulation)
- Powerful pump pressure and flow rate throughout the whole temperature range.

Convenience

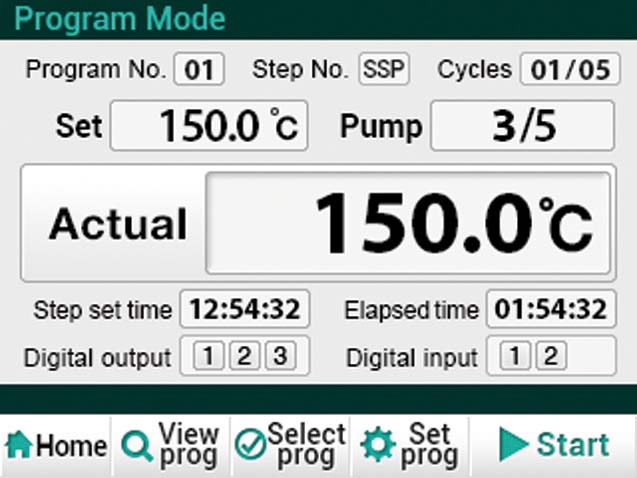

- Intuitive touch screen LCD controller with easy icons and logical menus.
- Dual wait on/off timer modes. (1 min. to 99 hr. 59 min.)
- Digital input and output control function for interlocking external devices.
- Corrosion-resistant, leak-proof, round-cornered, and easy-to-clean stainless steel bath with easy access drain valve.
- In case using silicon oil, you need to exchange other material tube (inlet and out late part), such as copper tube, a teflon tube instead of a silicon tube in fitting.
- RS-232 / USB interface for external control and data collection.
- Built-in casters and side handles for easy transport and installation.
- Monitor via mobile app anytime, anywhere with LC Connected (mobile monitoring system) connection.(when purchased LC GreenBox)

Safety

- Isolated design of agitator, heater, and sensor by a baffle plate to minimize the turbulence in the bath fluid and also to protect users and samples against direct contact.
- In case using silicon oil, you need to exchange other material tube (inlet and out late part), such as copper tube, a teflon tube instead of a silicon tube in fitting.
- Temperature warning indicator simply shows inner reservoir’s temperature by three different colors.
- Complete safety protection system with warning alarms.
- Low fluid level and dry-running, over-temperature, over-current.
- Technical data (according to DIN 12876)
- Keypad lock function prevents accidental changes during operation.
- Splash-proof keypad.
