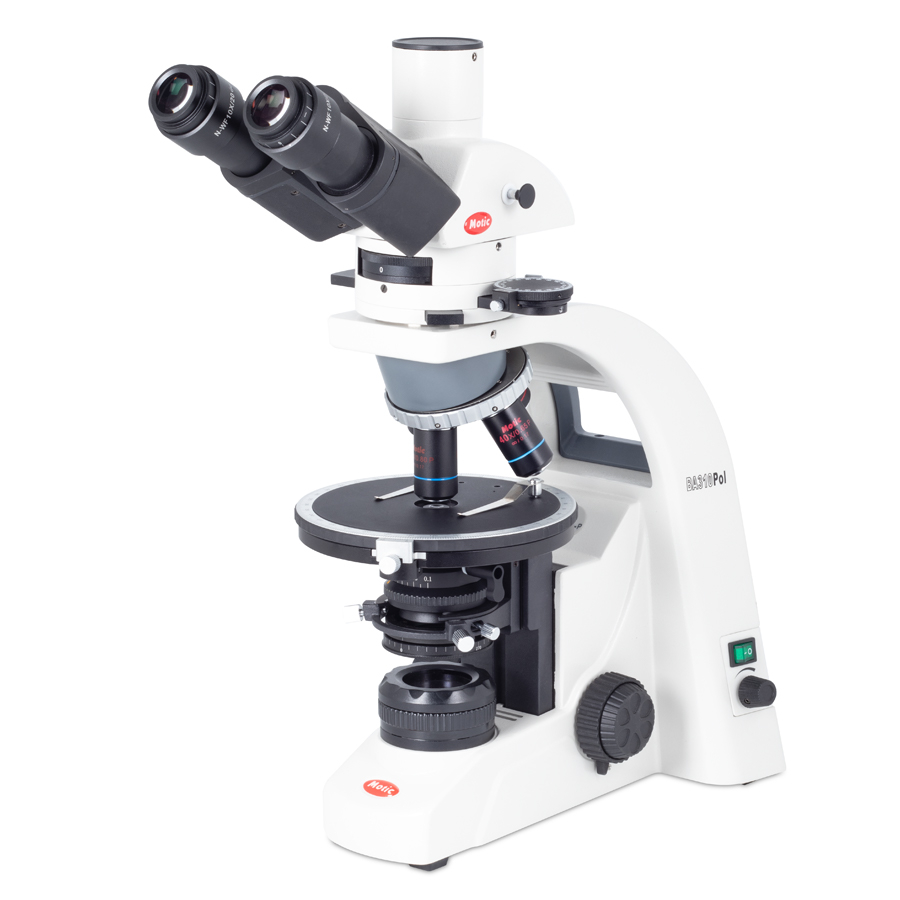

BA310 POL Trinocular (20:80 option)

Trinocular head Siedentopf type, 30° inclined (Light split 100:0/20:80)
Wide?eld high eyepoint eyepieces N-WF PL10X/20mm with diopter adjustment on both eyepieces and rubber eyecups
One eyepiece with crosshair reticle and positioning pivot
Intermediate body with rotatable analyzer 360º, Bertrand lens 0.5X and slot for compensators
Empty insertion plate
Reversed quadruple revolving nosepiece, single positions centrable
CCIS® Plan achromatic Strain-free objectives EC PL P 4X, 10X, 40X S, 60X S
Coaxial coarse and fine focusing system with tension adjustment
360° circular rotatable stage
Achromatic swing-out condenser N.A. 0.90/0.13 (strain-free) with iris diaphragm
Rotatable polarizer, fixed on condenser carrier
Köhler illumination quartz halogen 6V/30W with intensity control
Power supply 100-240V (CE)
45mm blue filter, power cord, Allen hexagonal key, vinyl dust cover
