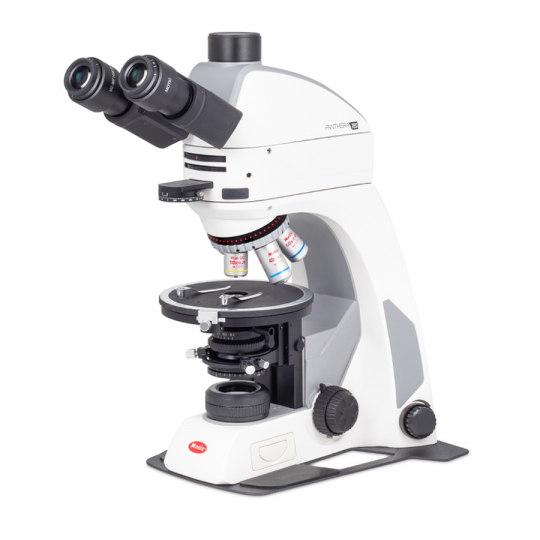

Panthera TEC POL Trinocular

Trinocular head Siedentopf type 25° inclined (Light split 50/50 fixed)
Widefield high eyepoint eyepieces UC-WF10X/22mm with diopter adjustment on both eyepieces and rubber eyecups
One eyepiece with crosshair reticle and positioning pivot
Intermediate body with rotatable analyzer 360º, Bertrand lens and slot for compensators
Empty insertion plate
Reversed coded quintuple nosepiece with light tracer (intelligent Light Management)
CCIS® Plan achromatic Strain-free objectives UC PL P 4X, 10X, 40X S, 60X S
Coaxial coarse and fine focusing system with tension adjustment
360° circular rotatable stage
Achromatic swing-out condenser N.A. 0.90/0.13 (strain-free) with iris diaphragm and fixed polarizer mounted on condenser carrier
Köhler illumination halogen module 30W, optional 3W LED module
Motic Light Tracer: Light memory, sleep mode, nosepiece LED light intensity and mode indicator
USB port for external camera power supply
Power supply 100-240V (CE)
Blue filter, power cord, dust cover, allen key, adjustable key for nosepiece, spare HAL bulb, interference color chart, screws for metal extension support
